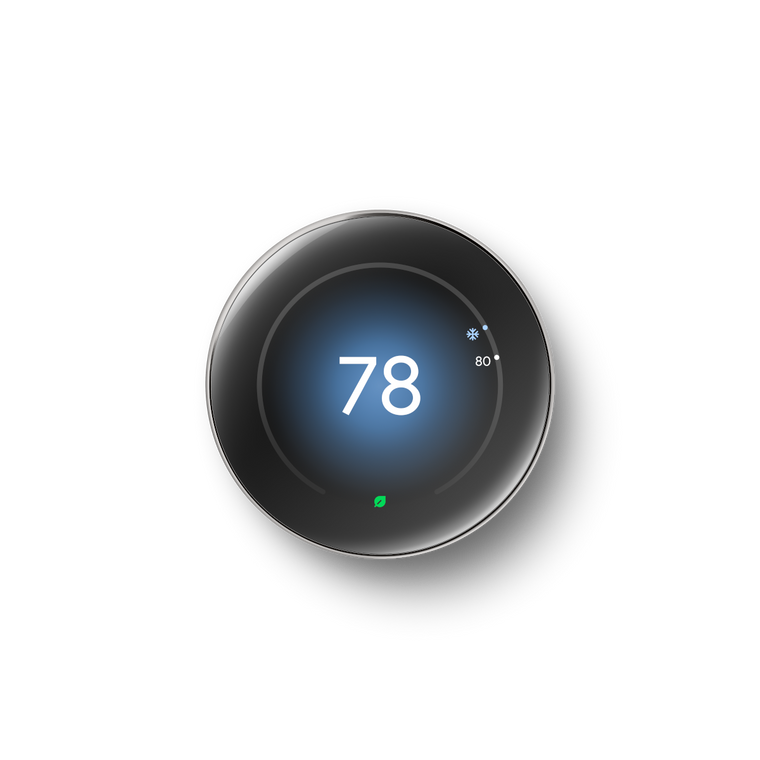

Nest Learning Thermostat (4th gen)

Meet the next-gen Nest Learning Thermostat. It’s a beautiful, brilliant way to save energy, keep your home comfortable, and help make sure your heating and cooling systems run smoothly.



● Designed with HVAC professionals in mind

● Keeps HVAC companies connected to customers long term with
HVAC System Health Monitor¹

● Sleek, modern new design, with elegant finishes and a larger,
customizable display

● Comes with a Nest Temperature Sensor (2nd gen) to help
customers manage hot and cold spots

● Compatible with complex HVAC systems up to 4H 2C, including
heat pump, ventilation, and central humidifiers and dehumidifiers

● Quick, easy installation in the Google Home app, with no need to
use the customer’s phone

● Short version: Automated Pro ID helps ensure that you don't miss
out on valuable Nest Pro benefits

● Smart Schedule gives customers more control and helps cut down
on callbacks for your technicians²

● Adaptive Eco helps balance comfort and energy savings²

● Smart ventilation brings in outdoor air when it’s cleanest and most
efficient^2,3

● Can be installed without a C-wire in the majority of homes

● PRO Model Comes with a 5-year extended warranty

¹ List of eligible HVAC systems is available at g.co/nest/hvac-monitoring. Alerts can
notify users of a potential issue with an eligible HVAC system. They’re meant to
provide helpful information, not an endorsement, representation, or warranty of any
kind about the health of an HVAC system. HVAC System Health Monitor is only
available to registered Nest Pros. A person with legal signing authority for the Pro
company can register for a Pro ID at g.co/nestpro. HVAC system alerts will surface
the information of a Pro company if the Pro company is enrolled in HVAC System
Health Monitor and a Pro ID is entered on the thermostat.
² Google Home app required.
³ Requires compatible HVAC ventilation system.





Tech Specs

Dimensions and Weight

Thermostat display

Diameter: 3.9 in (98 mm)

Depth: 1.1 in (29 mm)

Weight: 5.7 oz (161.8 g)

Thermostat display + base

Diameter: 3.9 in (98 mm)

Depth: 1.2 in (30 mm)

Weight: 6.9 oz (195 g)

Trim plate

Length: 6.6 in (168 mm)

Width: 5.4 in (138 mm)

Height: 0.2 in (5.5 mm)

Weight: 2.3 oz (66.5 g)

Colors Polished Silver (Nest Pro Edition available)

Polished Gold

Polished Obsidian

Display 2.68 inch (68 mm) diameter circular liquid crystal display (600 x 600 pixels)

Sensors Soli sensor for Motion Sense (learn more at g.co/nest/sensors)

Temperature

Humidity

Ambient light

Power Voltage

20-30VAC

Startup current

4VA

Standby current

2VA

Power source

HVAC system wiring

Battery

Built-in rechargeable lithium battery

Connectivity Wi-Fi 802.11n (2.4 GHz / 5 GHz)

HVAC System

Compatibility

The Nest Learning Thermostat (4th gen) works with most 24V systems,

including gas, electric, oil, forced air, heat pump, and radiant.

It can control: Heating 1, 2, and 3 stages (W1, W2, W3); Cooling 1 and 2

stages (Y1, Y2); Heat pump with auxiliary and emergency heat (O/B, AUX, E);

Fan (G, G2, G3); Power (C, RH, RC); Humidifier and dehumidifier (HUM,

DEHUM); Ventilation (VENT). The Nest Learning Thermostat’s * connector

can accept one of these wires: W3, E, HUM, or DEHUM. The AQ+ and AQconnectors

can accept 1-wire or 2-wire VENT, HUM, or DEHUM.

Power

Compatibility

Patented Power Sharing technology

Nest thermostats have a patented Power Sharing technology, which means

that unlike other smart thermostats, they can be installed without needing

a C wire in the vast majority of homes.

The Nest Learning Thermostat has a Power and System test that will let you

know if more power is needed. If so, you can install a C wire or Nest Power

Connector to ensure the thermostat always has enough power.

A C wire or Nest Power Connector can always be installed for added

certainty and reliability if you feel like there’s a risk of power loss or

accidental system activation.

The types of systems that will require a C wire or Nest Power Connector

can be found here.

Smart Home

and Voice

Assistant

Compatibility

Works with Google Home and Matter

Installation and setup require the Google Home app.

Control the Nest Learning Thermostat with Google Home and other

Matter-enabled apps and voice assistants.1

Accessories Trim plate to cover paint and drywall imperfections (included)

Steel plate for installation on electrical box (included)

Nest Temperature Sensor (2nd gen)

Warranty 5-year standard warranty for HVAC Pros

Sustainability Battery contains 100% recycled cobalt2

The Nest Learning Thermostat (4th gen) and Nest Temperature Sensor (2nd gen)

bundle is made with at least 33% recycled materials.3

Packaging uses 100% plastic-free materials4

Certifications ENERGY STAR® certified thermostat

Languages English

French

Spanish

Operating

Temperature

32°F to 104°F (0°C to 40°C)

Operating

Humidity

10% to 90%

Minimum and

Maximum

Temperature

Ranges

Max cooling temperature

90°F (32°C)

Min heating temperature

50°F (9°C)

Dual fuel break point

10°F to 50°F (-12°C to 10°C) but “Always” and “Never” are also options

Aux lockout temperature

0°F to 70°F (-18°C to 21°C)

Eco

Temperature

Range

Eco Temperatures default range

Heating: 56°F (13.5°C)

Cooling: 82°F (28°C)

Eco heating temperature range

Minimum: 40°F (4.5°C)

Maximum: 70°F (21°C)

Eco cooling temperature range

Minimum: 76°F (24.5°C)

Maximum: 95°F (35°C)

1Spec Category

Dimensions and

Weight

Thermostat display

Diameter: 3.9 in (98 mm)

Depth: 1.1 in (29 mm)

Weight: 5.7 oz (161.8 g)

Thermostat display + base

Diameter: 3.9 in (98 mm)

Depth: 1.2 in (30 mm)

Weight: 6.9 oz (195 g)

Trim plate

Length: 6.6 in (168 mm)

Width: 5.4 in (138 mm)

Height: 0.2 in (5.5 mm)

Weight: 2.3 oz (66.5 g)

Colors Polished Silver (Nest Pro Edition available)

Polished Gold

Polished Obsidian

Display 2.68 inch (68 mm) diameter circular liquid crystal display (600 x 600 pixels)

Sensors Soli sensor for Motion Sense (learn more at g.co/nest/sensors)

Temperature

Humidity

Ambient light

Power Voltage

20-30VAC

Startup current

4VA

Standby current

2VA

Power source

HVAC system wiring

Battery

Built-in rechargeable lithium battery

Connectivity Wi-Fi 802.11n (2.4 GHz / 5 GHz)

HVAC System

Compatibility

The Nest Learning Thermostat (4th gen) works with most 24V systems,

including gas, electric, oil, forced air, heat pump, and radiant.

It can control: Heating 1, 2, and 3 stages (W1, W2, W3); Cooling 1 and 2

stages (Y1, Y2); Heat pump with auxiliary and emergency heat (O/B, AUX, E);

Fan (G, G2, G3); Power (C, RH, RC); Humidifier and dehumidifier (HUM,

DEHUM); Ventilation (VENT). The Nest Learning Thermostat’s * connector

can accept one of these wires: W3, E, HUM, or DEHUM. The AQ+ and AQconnectors

can accept 1-wire or 2-wire VENT, HUM, or DEHUM.

Power

Compatibility

Patented Power Sharing technology

Nest thermostats have a patented Power Sharing technology, which means

that unlike other smart thermostats, they can be installed without needing

a C wire in the vast majority of homes.

The Nest Learning Thermostat has a Power and System test that will let you

know if more power is needed. If so, you can install a C wire or Nest Power

Connector to ensure the thermostat always has enough power.

A C wire or Nest Power Connector can always be installed for added

certainty and reliability if you feel like there’s a risk of power loss or

accidental system activation.

The types of systems that will require a C wire or Nest Power Connector

can be found here.

Smart Home

and Voice

Assistant

Compatibility

Works with Google Home and Matter

Installation and setup require the Google Home app.

Control the Nest Learning Thermostat with Google Home and other

Matter-enabled apps and voice assistants.1

Accessories Trim plate to cover paint and drywall imperfections (included)

Steel plate for installation on electrical box (included)

Nest Temperature Sensor (2nd gen)

Warranty 5-year standard warranty for HVAC Pros

Sustainability Battery contains 100% recycled cobalt2

The Nest Learning Thermostat (4th gen) and Nest Temperature Sensor (2nd gen)

bundle is made with at least 33% recycled materials.3

Packaging uses 100% plastic-free materials4

Certifications ENERGY STAR® certified thermostat

Languages English

French

Spanish

Operating

Temperature

32°F to 104°F (0°C to 40°C)

Operating

Humidity

10% to 90%

Minimum and

Maximum

Temperature

Ranges

Max cooling temperature

90°F (32°C)

Min heating temperature

50°F (9°C)

Dual fuel break point

10°F to 50°F (-12°C to 10°C) but “Always” and “Never” are also options

Aux lockout temperature

0°F to 70°F (-18°C to 21°C)

Eco

Temperature

Range

Eco Temperatures default range

Heating: 56°F (13.5°C)

Cooling: 82°F (28°C)

Eco heating temperature range

Minimum: 40°F (4.5°C)

Maximum: 70°F (21°C)

Eco cooling temperature range

Minimum: 76°F (24.5°C)

Maximum: 95°F (35°C)

1

1 Check csa-iot.org/members for more information on Matter-certified smart home platforms. To control Matter-enabled Google
devices with a 3rd party platform or app, you may need a device that works as a Matter hub from the 3rd party manufacturer.
2 Cobalt is 15% of the battery weight.
3 Based on product weight.
4 Based on retail packaging (excluding adhesive materials and required plastic stickers) as shipped by Google. To meet the request
of some retail partners, stickers and/or security tags are applied to some packaging variations and may contain plastic.
ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.
